Model No: NovaBeam Series
LED shadowless operating lamp
Quantity :
NovaBeam Series LED shadowless operating lamp is suitable for various operation needs.
It is a modern ideal surgical lighting equipment operating room and purify the operating room.
It is a modern ideal surgical lighting equipment operating room and purify the operating room.
Technical Parameters
| Model | NovaBeam Series | Red color index R9 | ≥97 |
| Illumination at 1m(lux) | 160000/160000 | Number of LED bulbs | 87/87 |
| lllumination at lm on Endo mode(lux) | 15000 | Average bulb life (hours) | 50,000 |
| Light field diameter at lm (cm) | 10-30 | Heat-to-light ratio(mW/m ²lx) | ≤3.2 |
| Light field diameter Dl0(mm) | 220±40/220±40 | Memory function | 4 |
| Light field diamete D50(mm) | 110±35/110±35 | Power supply | 100-240 V,50/60HZ |
| L1+L2 Depth ofillumination(cm) | 150 | Input power(VA) | 150VA/150VA |
| Color rendering index(Ra) | 100≥Ra≥85 | Ceiling height for installation(cm) | 270-320 |
| Optional color temperature(K) | 6700≥Tc≥3000 | Green color rendering index R11 | ≥97 |
Details

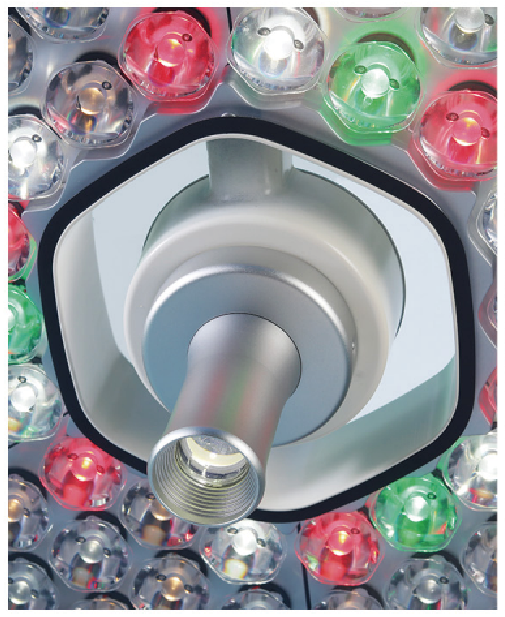

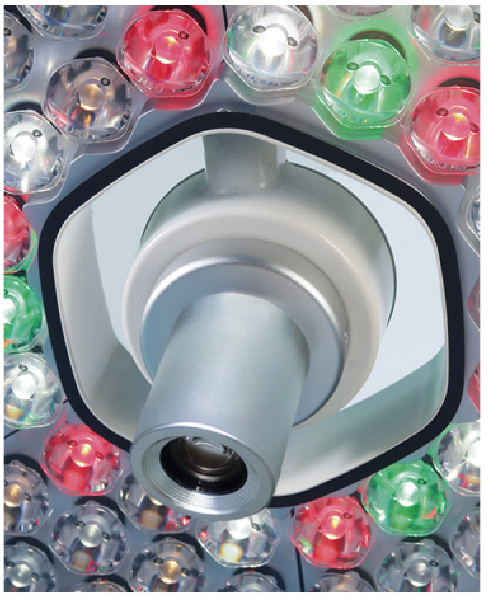

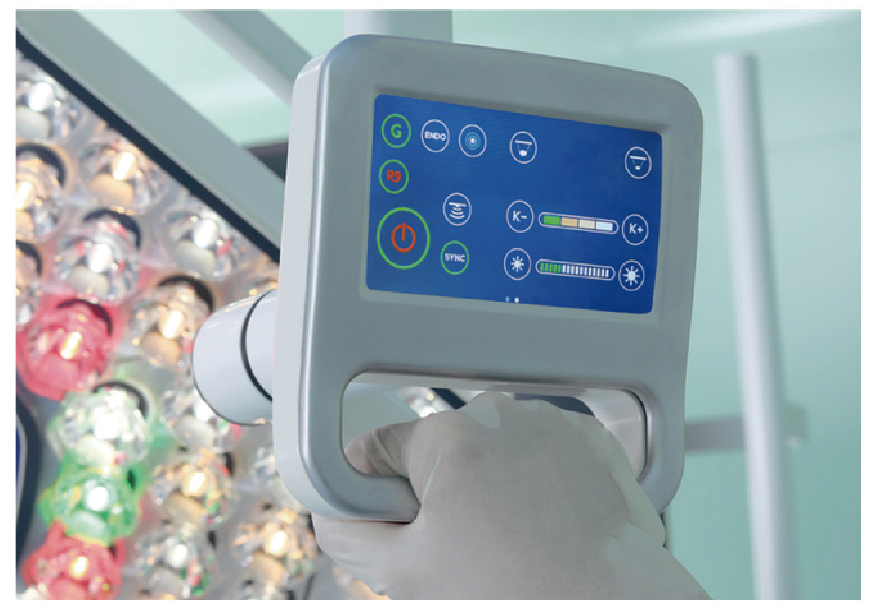

Intelligent LCD touch control Independent depth lighting Optional built-in camera

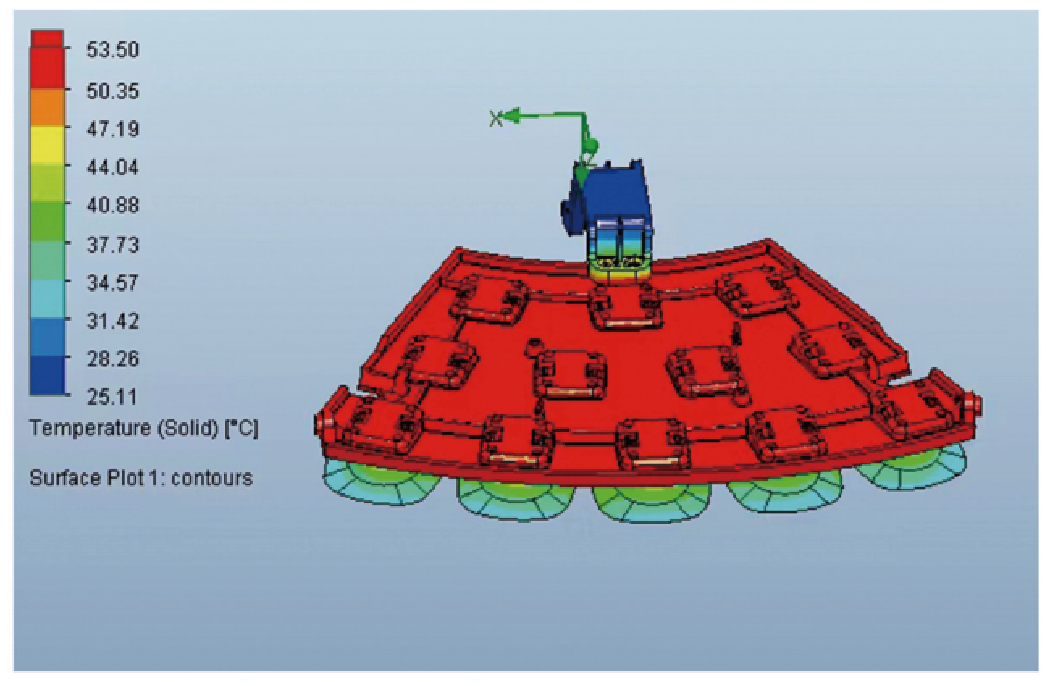

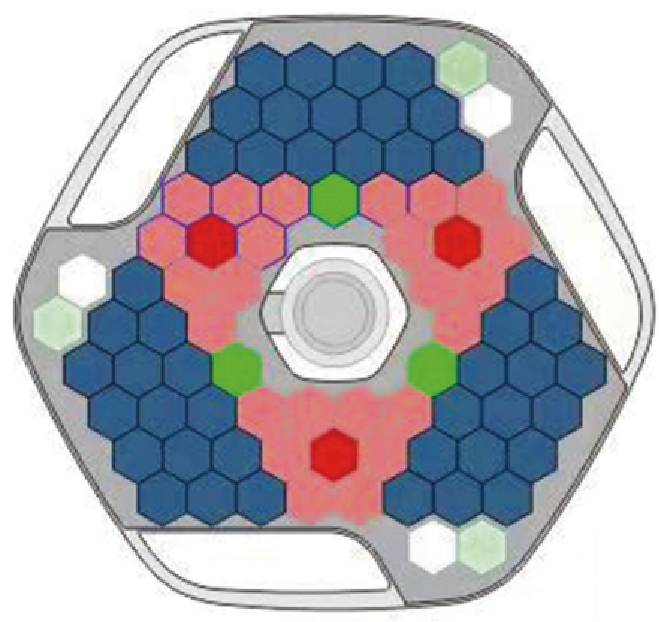

Computer-Programmed Optical High Thermal Conductivity Heat Dissipation

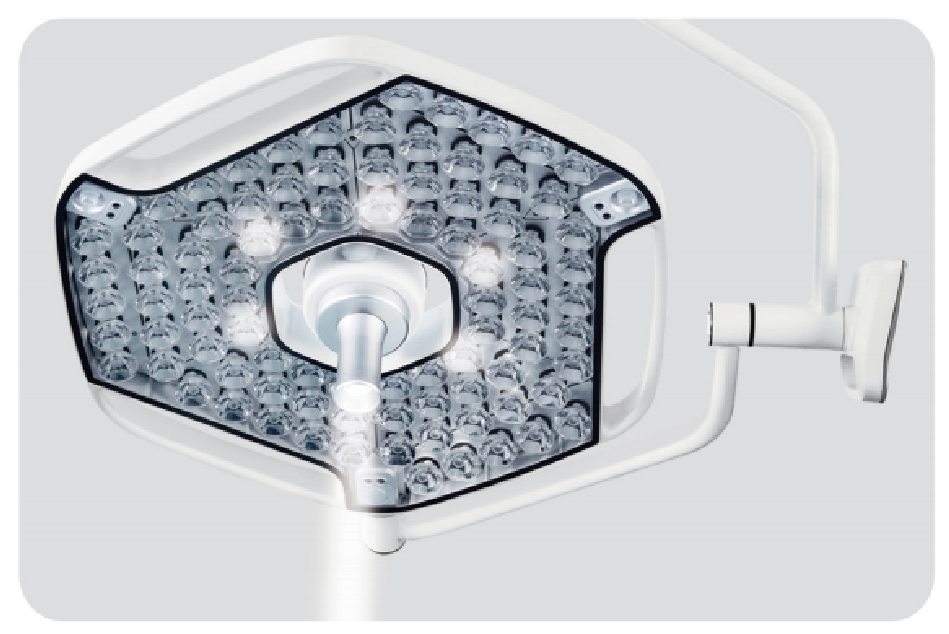

Arrangement - High Shadowless Rate Technology - Low Temperature Rise
Arrangement - High Shadowless Rate Technology - Low Temperature Rise

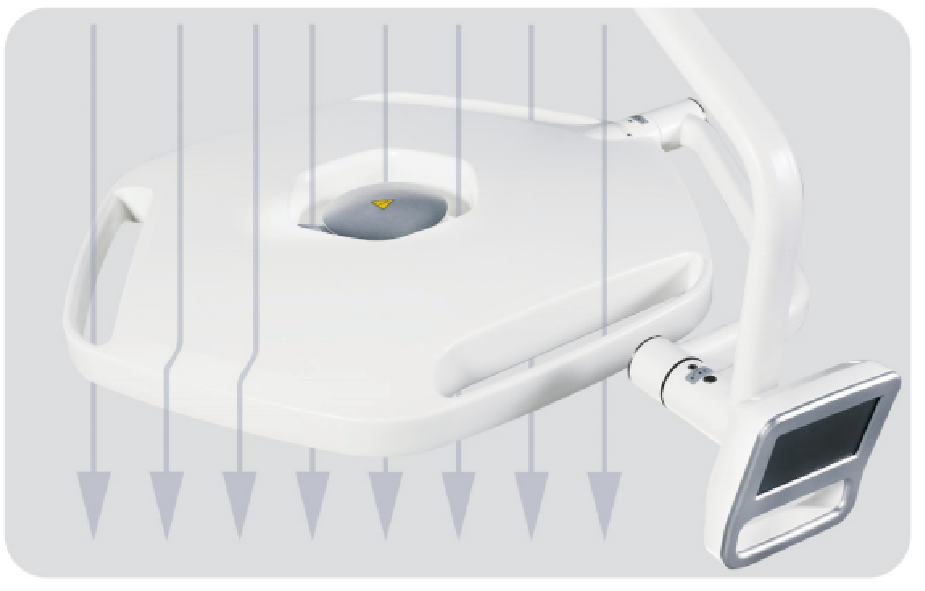

llumination automatic compensation Excellent laminar flow cleaning adaptability

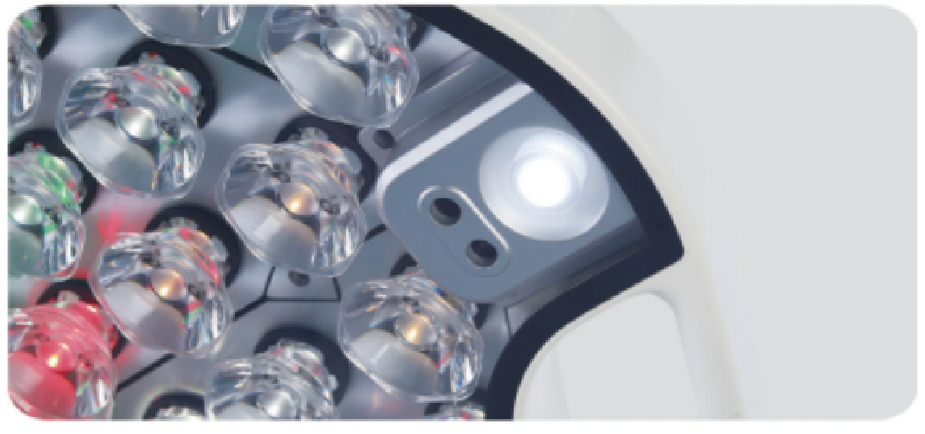

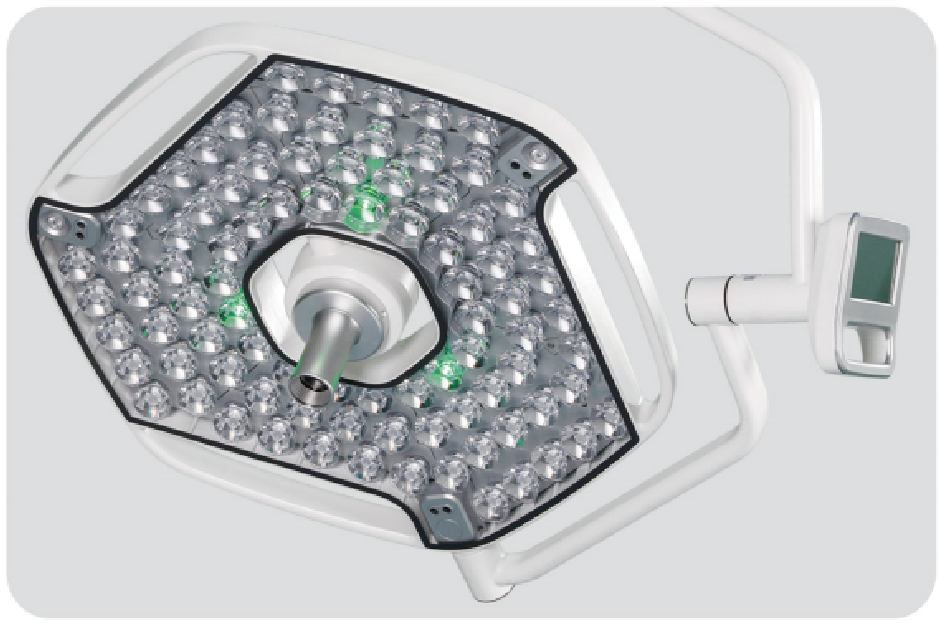

Minimally invasive lighting Green Light Mode
