Model No: WM-XR2S series
LED X-Ray Film Viewbox
Quantity :
* Aviation material with ABS cases,the case thinkness is only 25mm.
* Full Digital Control
* Advanced Ultra Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips
* Imported Acrylic View Panel
* Eye Protective Feature
* PWM Low-Voltage Digital Continuous Dimming System
* LED Constant Current Drive Power
* Automatic film activation
* Improved film clip
* Full Digital Control
* Advanced Ultra Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips
* Imported Acrylic View Panel
* Eye Protective Feature
* PWM Low-Voltage Digital Continuous Dimming System
* LED Constant Current Drive Power
* Automatic film activation
* Improved film clip
Technical Parameters：
Model | WM-XR2S-1 | WM-XR2S-2 | WM-XR2S-3 | WM-XR2S-4 |

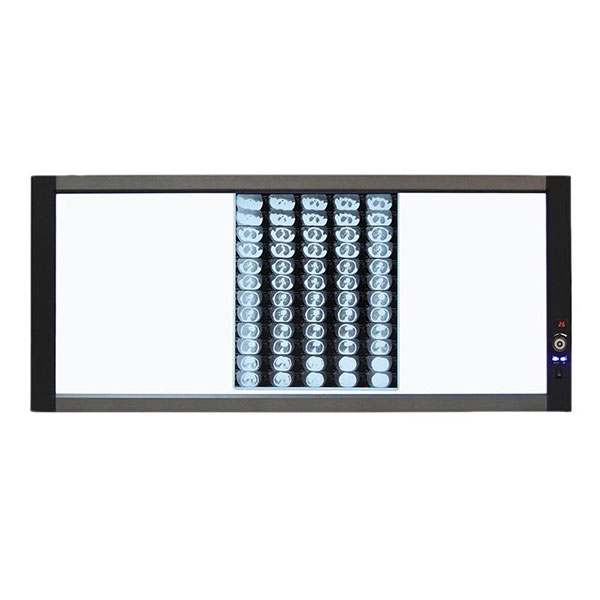

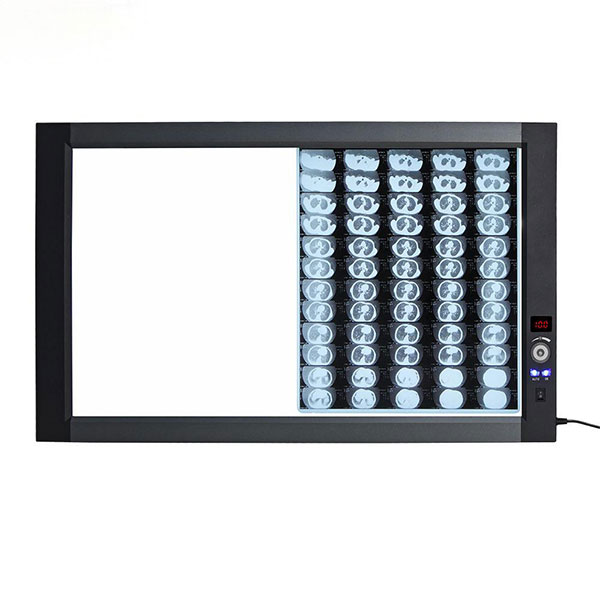

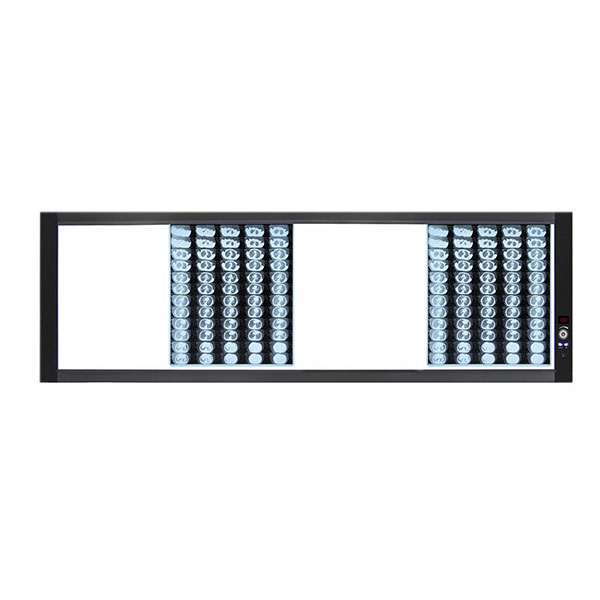

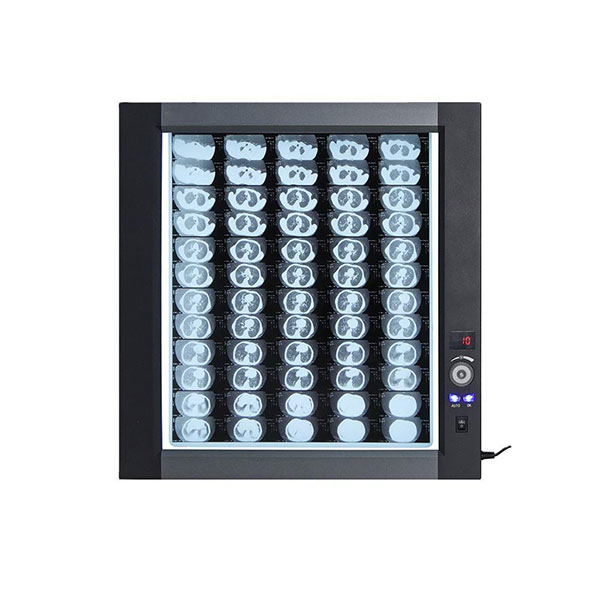

| Picture |  |  |  |  |
| External Size(mm) | 478*500*25 | 838*500*25 | 1198*500*25 | 1558*500*25 |
| Visual Size(mm) | 360*425 | 720*422 | 1080*425 | 1440*425 |
| Max.Power | 30W | 60W | 90W | 120W |
| Light source mode | Side-lit light mode | |||
| Light Source | Super high brightness SMD LED 144PCS/panel;8 000K CT;LED Lifespan of 100 000hours | |||
| Electric Parameters | Global Voltage Adaptive built-in power;AC90V-240V;50/60Hz | |||
| Brightness Setting | 3 PWM dimming system;brightness 0-100 stages stage continuous adjustable among 0-4500cd/㎡ | |||
| Clip device | Slicone clip device | |||
| Mount Type | Wall-mounte or bracket | |||
| Application Films | General film,digital film,breast mamography film | |||
| Sensor function | The panel will be light up when film inserted and off when moved away. | |||
| Viewing Uniformity | ≥90% | |||
| Working Environmen | Room Average Illuminance should no more than 100 lux | |||
